Truck Scales
(Also See Truck/Car
Scales Portable)
| Cambridge
LoLander Flat top Steel
Deck Truck Scale |
• The Cambridge
LoLander Truck Scale is 12" high which means less concrete
and construction and shorter approach ramps.
• Structural tubular steel construction is the key to the Cambridge
LoLander design.
• 2" drain pipes allow water to flow from the deck to
the ground below. This helps prevent water from clinging to the
sides of the scale causing corrosion.
OPTIONS:
• Model: 65040S Stainless Steel Sensortronic Load Cells
• Guard rails
• Asphalt Undercoating Package
|

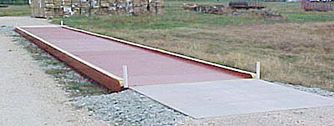

Cambridge LoLander
shown with optional guard rails
|
| The
Cambridge LoLander Truck Scale utilizes the same rugged structural
tubular steel construction made famous by Cambridge. The main
structural tubular steel beams are cross strutted to maintain
structural integrity and weight performance accuracy. The LoLander
stand is built to protect the load cells from lightning damage.
The load knobs are constructed of heavy duty 2" steel. The
load cells are constructed of high alloy steel and electroless
nickle plated finish. The nylatron blocks slide onto 3/4"
rods and can be spaced with 1/4" nylatron spacers. This eliminates
the use of grout for height adjustment. The stands do not need
to be attached to the foundation as the checking system prevents
impact movement on the stands. |
|
Model |
Size |
Capacity |
CLC *(Tons) |
Sections |
Load Cells |
Price |
|
10-FOOT WIDTH |
|
Cam-LL5010 |
10' x 10' |
50 tons |
35 |
2 |
4 |
Consult Dealer
|
|
Cam-LL5020 |
10' x 20' |
50 tons |
35 |
2 |
4 |
"
|
|
Cam-LL5035 |
10' x 35' |
80 tons |
35 |
3 |
6 |
"
|
|
Cam-LL5040 |
10' x 40' |
80 tons |
35 |
3 |
6 |
"
|
|
Cam-LL5060 |
10' x 60' |
100 tons |
35 |
4 |
8 |
"
|
|
Cam-LL5070 |
10' x 70' |
100 tons |
35 |
5 |
10 |
"
|
|
Cam-LL5080 |
10' x 80' |
100 tons |
35 |
5 |
10 |
"
|
|
11-FOOT WIDTH |
|
Cam-LL5010 |
11' x 10' |
50 tons |
35 |
2 |
4 |
"
|
|
Cam-LL5020 |
11' x 20' |
50 tons |
35 |
2 |
4 |
"
|
|
Cam-LL5035 |
11' x 35' |
80 tons |
35 |
3 |
6 |
"
|
|
Cam-LL5040 |
11' x 40' |
80 tons |
35 |
3 |
6 |
"
|
|
Cam-LL5060 |
11' x 60' |
100 tons |
35 |
4 |
8 |
"
|
|
Cam-LL5070 |
11' x 70' |
100 tons |
35 |
5 |
10 |
"
|
|
Cam-LL5080 |
11' x 80' |
100 tons |
35 |
5 |
10 |
"
|
|
OPTIONS |
|
Model: 65040S Stainless
Steel Sensortronic Load Cells |
Price Each |
"
|
|
Guard Rails |
Price Per Foot Of Scale |
"
|
|
Asphalt Undercoating |
Price Per Square Foot |
"
|
| *
Concentrated Load Capacity |
| RL-SURVIVOR PT
Concrete Deck
Pit Truck Scale |
| The SURVIVOR
PT Series: truck
scales are prepared for a 6-inch-thick concrete weighbridge,
and an up to 12-foot wide loading area for greater safety
and faster processing during peak usage times. The 24-inch*
main I-beams limit deflection under heavy loads. Eight-inch
structural steel cross-members located approximately every
4 feet spread the loads evenly for less flexing and a longer
life cycle. The SURVIVOR PT Series truck scales maintain
accuracy even with a 90,000 lb load in mid span (on a 4-foot
loading area). The weighbridge deflection is less than 1:900
(e.g., 0.26 inches on a 20-foot span). Less deflection means
less cumulative metal fatigue and much longer life cycles.
For dependable weighments over the long haul and a design
life of decades, look to the SURVIVOR PT. *States with 48"
pit clean out requirements must specify 18" main beams
at time of order. |
| Package includes:
Weighbridge steel; weighbridge fasteners; load cells with
conduit fitting; load cell mounts with leveling bolts and
anchor bolts; copper transient bypass cables at each load
cell; flexible plastic conduit from load cell to metal conduit;
conduit fittings from plastic to metal conduit; conduit
for each load cell cable; FRP junction box(es); summing
board; homerun cable to indicator (60' long); print packages
including deck assembly, foundation drawing and rebar placement
for concrete deck; along with detailed installation manual.
Ten year limited warranty on weightbridge. Two year limited
warranty on load cells/electronics. |
| Package
does not include: Corrugated sheeting for deck; rebar
for concrete deck; pit coping; rebar and mesh for foundation;
concrete; indicator; printer; freight charges including
material handling, shipping charges, transportation permits
and fees, escort(s) charge, and insurance transportation
fees. |
 |
|
|
Length |
Capacity |
CLC **(Tons) |
Model Number |
Price |
|
10-FOOT WIDTH |
|
10 ft |
60 tons |
45 |
SR1010-PC-60 |
Consult Dealer
|
|
20 ft |
60 tons |
45 |
SR2010-PC-60 |
"
|
|
24 ft* |
60 tons |
45 |
SR2410-PC-60 |
"
|
|
40 ft |
100 tons |
45 |
SR4010-PC-60 |
"
|
|
47 ft* |
100 tons |
45 |
SR4710-PC-60 |
"
|
|
60 ft |
100 tons |
45 |
SR6010-PC-100 |
"
|
|
70 ft |
100 tons |
45 |
SR7010-PC-100 |
"
|
|
80 ft |
100 tons |
45 |
SR8010-PC-100 |
"
|
|
93 ft* |
100 tons |
45 |
SR9310-PC-100 |
"
|
|
100 ft |
100 tons |
45 |
SR10010-PC-100 |
"
|
|
117 ft* |
100 tons |
45 |
SR11710-PC-100 |
"
|
|
11-FOOT WIDTH |
|
10 ft |
60 tons |
45 |
SR1011-PC-60 |
"
|
|
20 ft |
60 tons |
45 |
SR2011-PC-60 |
"
|
|
24 ft* |
60 tons |
45 |
SR2411-PC-60 |
"
|
|
40 ft |
100 tons |
45 |
SR4011-PC-60 |
"
|
|
47 ft* |
100 tons |
45 |
SR4711-PC-60 |
"
|
|
60 ft |
100 tons |
45 |
SR6011-PC-100 |
"
|
|
70 ft |
100 tons |
45 |
SR7011-PC-100 |
"
|
|
80 ft |
100 tons |
45 |
SR8011-PC-100 |
"
|
|
93 ft* |
100 tons |
45 |
SR9311-PC-100 |
"
|
|
100 ft |
100 tons |
45 |
SR10011-PC-100 |
"
|
|
117 ft* |
100 tons |
45 |
SR11711-PC-100 |
"
|
|
12-FOOT WIDTH |
|
10 ft |
60 tons |
45 |
SR1012-PC-60 |
"
|
|
20 ft |
60 tons |
45 |
SR2012-PC-60 |
"
|
|
24 ft* |
60 tons |
45 |
SR2412-PC-60 |
"
|
|
40 ft |
100 tons |
45 |
SR4012-PC-60 |
"
|
|
47 ft* |
100 tons |
45 |
SR4712-PC-60 |
"
|
|
60 ft |
100 tons |
45 |
SR6012-PC-100 |
"
|
|
70 ft |
100 tons |
45 |
SR7012-PC-100 |
"
|
|
80 ft |
100 tons |
45 |
SR8012-PC-100 |
"
|
|
93 ft* |
100 tons |
45 |
SR9312-PC-100 |
"
|
|
100 ft |
100 tons |
45 |
SR10012-PC-100 |
"
|
|
117 ft* |
100 tons |
45 |
SR11712-PC-100 |
"
|
| *
24 ft actual = 23' 2 1/2", 47 ft actual = 46' 6 1/2",
93 ft actual = 93' 2 1/2", 117 ft actual = 116' 6 1/2" |
| ** Concentrated
Load Capacity |
|
Pit scales are designed
to fit inside correctly-sized pits. Example: 70' x 10' scale is
actually 69' 10 1/2" L x 9' 10 1/2" W. |
|
Call for pricing on 14'
wide scales. |
| RL-SURVIVOR OTR
Over The Road
Flattop Truck Scale |
| The SURVIVOR
OTR Series vehicle scales feature a low-profile 12.5-inch-thick
steel and concrete weighbridge, and an up to 12-foot-wide
loading area for greater safety and faster processing during
peak usage times. The SURVIVOR OTR Series offers top access
to all load cells and junction boxes, allowing easy installation
and maintenance in above ground and pit applications. The
SURVIVOR OTR Series vehicle scales maintain legal-for- trade
accuracy, even with a 60,000 lb concentrated load in mid
span of the weighbridge. Designed for use with legal highway
loads, The SURVIVOR OTR is a cost-effective approach to
truck weighing in facilities with moderate traffic. |
| Package includes:
Assembled weighbridge modules and weighbridge fasteners;
load cells with conduit fitting; load cell mounts with leveling
bolts and anchor bolts; copper transient bypass cables at
each load cell; conduit for load cell cable runs; flexible
plastic conduit from load cell to metal conduit; conduit
fittings from plastic to metal conduit; FRP junction box(es);
homerun cable to indicator (60' long); print packages including
foundation drawing (pier, floating slab or pit) and installation
manual; and galvanized pan for concrete. Two year limited
warranty on weightbridge. Two year limited warranty on load
cells/electronics. |
| Package
does not include: Approach coping; foundation alignment
posts; rebar and mesh for foundation; concrete; indicator;
printer; freight charges including material handling;
shipping charges, transportation permits and fees, escort(s)
charge, and insurance transportation fees. |
|
|
|
Length |
Capacity |
CLC **(Tons) |
Model Number |
Price |
|
CONCRETE DECK 10-FOOT
WIDTH |
|
10 ft |
60 tons |
30 |
EZ-1010-SC-60-OTR |
Consult Dealer
|
|
20 ft |
60 tons |
30 |
EZ-2010-SC-60-OTR |
"
|
|
24 ft* |
60 tons |
30 |
EZ-2410-SC-60-OTR |
"
|
|
40 ft |
60 tons |
30 |
EZ-4010-SC-60-OTR |
"
|
|
47 ft* |
60 tons |
30 |
EZ-4710-SC-60-OTR |
"
|
|
60 ft |
100 tons |
30 |
EZ-6010-SC-100-OTR |
"
|
|
70 ft |
100 tons |
30 |
EZ-7010-SC-100-OTR |
"
|
|
80 ft |
100 tons |
30 |
EZ-8010-SC-100-OTR |
"
|
|
93 ft* |
100 tons |
30 |
EZ-9310-SC-100-OTR |
"
|
|
100 ft |
100 tons |
30 |
EZ-10010-SC-100-OTR |
"
|
|
117 ft* |
100 tons |
30 |
EZ-11710-SC-100-OTR |
"
|
|
CONCRETE DECK 11-FOOT
WIDTH |
|
10 ft |
60 tons |
30 |
EZ-1011-SC-60-OTR |
"
|
|
20 ft |
60 tons |
30 |
EZ-2011-SC-60-OTR |
"
|
|
24 ft* |
60 tons |
30 |
EZ-2411-SC-60-OTR |
"
|
|
40 ft |
60 tons |
30 |
EZ-4011-SC-60-OTR |
"
|
|
47 ft* |
60 tons |
30 |
EZ-4711-SC-60-OTR |
"
|
|
60 ft |
100 tons |
30 |
EZ-6011-SC-100-OTR |
"
|
|
70 ft |
100 tons |
30 |
EZ-7011-SC-100-OTR |
"
|
|
80 ft |
100 tons |
30 |
EZ-8011-SC-100-OTR |
"
|
|
93 ft* |
100 tons |
30 |
EZ-9311-SC-100-OTR |
"
|
|
100 ft |
100 tons |
30 |
EZ-10011-SC-100-OTR |
"
|
|
117 ft* |
100 tons |
30 |
EZ-11711-SC-100-OTR |
"
|
|
CONCRETE DECK 12-FOOT
WIDTH |
|
10 ft |
60 tons |
30 |
EZ-1012-SC-60-OTR |
"
|
|
20 ft |
60 tons |
30 |
EZ-2012-SC-60-OTR |
"
|
|
24 ft* |
60 tons |
30 |
EZ-2412-SC-60-OTR |
"
|
|
40 ft |
60 tons |
30 |
EZ-4012-SC-60-OTR |
"
|
|
47 ft* |
60 tons |
30 |
EZ-4712-SC-60-OTR |
"
|
|
60 ft |
100 tons |
30 |
EZ-6012-SC-100-OTR |
"
|
|
70 ft |
100 tons |
30 |
EZ-7012-SC-100-OTR |
"
|
|
80 ft |
100 tons |
30 |
EZ-8012-SC-100-OTR |
"
|
|
93 ft* |
100 tons |
30 |
EZ-9312-SC-100-OTR |
"
|
|
100 ft |
100 tons |
30 |
EZ-10012-SC-100-OTR |
"
|
|
117 ft* |
100 tons |
30 |
EZ-11712-SC-100-OTR |
"
|
| *
24 ft actual = 23' 4", 47 ft actual = 46' 8", 93 ft actual
= 93' 4", 117 ft actual = 116' 8" |
| ** Concentrated
Load Capacity |
OTR scales feature undersized
dimensions and are designed to fit into existing foundations.
Example: 70' x 10' scale is actually 69' 10.5" L x 9' 10.5"
W. |
| RL-SURVIVOR EZ-ST
Steel Deck Flattop
Truck Scale |
| SURVIVOR EZ-ST:
Built with more steel than any other truck scale currently
available, the new SURVIVOR EZ-ST truly sets itself apart
as the toughest truck scale on earth. Featuring a 12.5-
inch-thick steel weighbridge, the EZ-ST is certified by
an independent PE to deliver exceptional performance for
at least 2 million weighments! Under the heaviest loads,
the EZ-ST weighbridge deflects just 1:700—that’s
only .34 inches on a 20 ft span! In addition, it stands
at an overall height of 20 inches, providing a large and
easily accessible clean out. With an up to 12-foot-wide
loading area it delivers greater safety and faster processing,
allowing your operation to run at full potential. In order
to meet the growing need for flexibility, the EZ-ST incorporates
a modular design and is expandable up to 117 feet. And as
trafffic patterns change or your business grows, it can
be relocated easily and quickly. For years of dependable
performance count on the SURVIVOR EZ-ST to take your business
to the next level. |
| Package includes:
Assembled weighbridge modules and weighbridge fasteners;
load cells with conduit fitting; load cell mounts with leveling
bolts and anchor bolts; copper transient bypass cables at
each load cell; metal conduit on weighbridge for load cell
cable runs; flexible plastic conduit from load cell to metal
conduit; conduit fittings from plastic to metal conduit;
FRP junction box(es); homerun cable to indicator (60' long)
and print packages including foundation drawing (pier or
floating slab) and installation manual. Ten year limited
warranty on weightbridge. Two year limited warranty on load
cells/electronics. |
| Package
does not include: Approach coping; foundation alignment
posts; rebar and mesh for foundation; indicator; printer;
freight charges including material handling; shipping
charges, transportation permits and fees, escort(s) charge,
and insurance transportation fees. |
|
|
|
Length |
Capacity |
CLC **(Tons) |
Model Number |
Price |
|
STEEL DECK 10-FOOT WIDTH |
|
10 ft |
60 tons |
35 |
EZ-1010-ST-60 |
Consult Dealer
|
|
20 ft |
60 tons |
35 |
EZ-2010-ST-60 |
"
|
|
24 ft* |
60 tons |
35 |
EZ-2410-ST-60 |
"
|
|
40 ft |
60 tons |
35 |
EZ-4010-ST-60 |
"
|
|
47 ft* |
60 tons |
35 |
EZ-4710-ST-60 |
"
|
|
60 ft |
100 tons |
35 |
EZ-6010-ST-100 |
"
|
|
70 ft |
100 tons |
35 |
EZ-7010-ST-100 |
"
|
|
80 ft |
100 tons |
35 |
EZ-8010-ST-100 |
"
|
|
93 ft* |
100 tons |
35 |
EZ-9310-ST100 |
"
|
|
100 ft |
100 tons |
35 |
EZ-10010-ST-100 |
"
|
|
117 ft* |
100 tons |
35 |
EZ-11710-ST-100 |
"
|
|
STEEL DECK 11-FOOT WIDTH |
|
10 ft |
60 tons |
35 |
EZ-1011-ST-60 |
"
|
|
20 ft |
60 tons |
35 |
EZ-2011-ST-60 |
"
|
|
24 ft* |
60 tons |
35 |
EZ-2411-ST-60 |
"
|
|
40 ft |
60 tons |
35 |
EZ-4011-ST-60 |
"
|
|
47 ft* |
60 tons |
35 |
EZ-4711-ST-60 |
"
|
|
60 ft |
100 tons |
35 |
EZ-6011-ST-100 |
"
|
|
70 ft |
100 tons |
35 |
EZ-7011-ST-100 |
"
|
|
80 ft |
100 tons |
35 |
EZ-8011-ST-100 |
"
|
|
93 ft* |
100 tons |
35 |
EZ-9311-ST-100 |
"
|
|
100 ft |
100 tons |
35 |
EZ-10011-ST-100 |
"
|
|
117 ft* |
100 tons |
35 |
EZ-11711-ST-100 |
"
|
|
STEEL DECK 12-FOOT WIDTH |
|
10 ft |
60 tons |
35 |
EZ-1012-ST-60 |
"
|
|
20 ft |
60 tons |
35 |
EZ-2012-ST-60 |
"
|
|
24 ft* |
60 tons |
35 |
EZ-2412-ST-60 |
"
|
|
40 ft |
60 tons |
35 |
EZ-4012-ST-60 |
"
|
|
47 ft* |
60 tons |
35 |
EZ-4712-ST-60 |
"
|
|
60 ft |
100 tons |
35 |
EZ-6012-ST-100 |
"
|
|
70 ft |
100 tons |
35 |
EZ-7012-ST-100 |
"
|
|
80 ft |
100 tons |
35 |
EZ-8012-ST-100 |
"
|
|
93 ft* |
100 tons |
35 |
EZ-9312-ST-100 |
"
|
|
100 ft |
100 tons |
35 |
EZ-10012-ST-100 |
"
|
|
117 ft* |
100 tons |
35 |
EZ-11712-ST-100 |
" |
| *
24 ft actual = 23' 4", 47 ft actual = 46' 8", 93 ft actual
= 93' 4", 117 ft actual = 116' 8" |
| ** Concentrated
Load Capacity |
|
