Portable Car and Truck Scales
| CAMBRIDGE
Model 700 PAW Portable
Axle Weigher |
| Model 700-PAW
ramps are constructed with a standard asphalt package.
This design incorporates a heavy gauge carbon steel plate
attached directly to the bottom of the ramp. This plate
features pre-drilled lag down locations and leveling
feet brackets to firmly secure the scale in place. The
oversized “footprint” created by this plate
greatly increases stability and allows the 700-PAW to
be used on hard pack, asphalt, or concrete surfaces.
Up to eight PAWs may be wired together to form a complete
truck weighing system. Note:
Portable Axle Weighers and ramps are sold separately |
Standard Features
• 50K, 60K, 70K lb. capacities available.
• Four 10K, 15K, 20K lb. environmentally sealed load cells
• Stainless steel NEMA 4X junction box
• Structural tubular steel construction
• Diamond tread deck plate
• 200% overload protection
|
|
|
 |
This illustration
depicts the Model 700-PAW in a typical truck scale component
system. Poured concrete replaces much of the steel area
of a traditional truck scale offering all the capability
of a truck scale at a sizeable savings. |
|
|
Model
|
SIZE
|
Capacity (Each)
|
Price (Each)
|
|
CAM-700 PAW -25K
|
32" x 84" x
5"
|
25,000 lb
|
$3,325.00
|
|
25K Ramp
|
32" x 36" x
5"
|
25,000 lb
|
$495.00
|
|
CAM-700 PAW -30K
|
32" x 84" x
6"
|
30,000 lb
|
$4,495.00
|
|
CAM-700 PAW -30K
|
32" x 120" x
6"
|
30,000 lb
|
$4,995.00
|
|
30K Ramp
|
32" x 36" x
6"
|
30,000 lb
|
$550.00
|
|
CAM-700 PAW -35K
|
32" x 84" x
6"
|
35,000 lb
|
$4,660.00
|
|
CAM-700 PAW -35K
|
32" x 120" x
6"
|
35,000 lb
|
$5,160.00
|
|
35K Ramp
|
32" x 36" x
6"
|
35,000 lb
|
$595.00
|
| CAS RW-P Road
Weigher Plate |
| RW-P Series: Convenient
vehicle weighing platform. This rugged cast aluminum weighing
plate is light enough to accommodate portability yet large
enough for any type of vehicle. Solid rubber ramps provide
maximum grip and balance in even the most severe unleveled

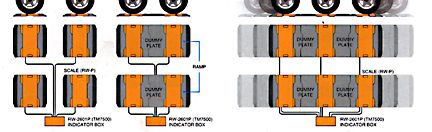

conditions. The RW can even accommodate for virtually any
vehicle's axle arrangement with the use of "dummy
plates". these are simply rubber spacers of different
sizes that can be placed between multiple platforms. |
| Features: High
accuracy. Portable. By-Wheel weight or Total Weight. Water
Resistant. Advanced Digital Filtering to minimize vibration
effects. Test for axle balance and overload conditions. |
Accessories: Ramps
and Cables
Options: Dummy plates |
| RW-2601P Indicator
Features: Built
in clock. 1 Serial port :RS 232. Built in charger and
batteries. 10 'Vehicle number"memories. High speed
dot matrix receipt printer. Connect to a PC or a Remote
display. Connect up to 6 platforms simultaneously. Completely
self contained portable unit. Large easty to read LCD
display with back light. Industrial carry case. Product
weight: 18.7 lb/8.5 kg |
|
|
|
|
Model
|
Capacity lb
|
Price
|
|
RW10P
|
20,000 x 10 lb
|
$3,295.00
|
|
RW-15P
|
30,000 x 20 lb
|
$3,295.00
|
|
Dummy Plate
|
$195.00
|
|
RW-2601P Indicator
|
$1,595.00
|
| CAS RW Series
Wheelweigher |
| RW Series: Designed
for mobile weight inspection |
|
Features: Rugged
cast aluminum. 5 digit 1" LCD display with automatic
backlight. Advanced digital filtering to compensate
for vibration. Mult-axle weighing (up to 6 scales).
kg / lb switchable. Displays individual or total weight.
Operates on 12 "AA" batteries. Charging cable
w/ transformer included. 150% safe overload. Available
in single (S) or double (L) pad width.
|
|
|
|
Model
|
Pad Width
|
Capacity lb
|
Capacity kg
|
Price
|
|
RW-05S
|
12.2"
|
10,000 x 5 lb
|
5,000 x 2 kg
|
$1,695.00
|
|
RW-10S
|
12.2"
|
20,000 x 10 lb
|
10,000 x 5 kg
|
$1,695.00
|
|
RW- 05L
|
24.6"
|
10,000 x 5 lb
|
5,000 x 2 kg
|
$2,295.00
|
|
RW-10L
|
24.6"
|
20,000 x 10 lb
|
10,000 x 5 kg
|
$2,295.00
|
Go To Page 1,2
Page 2 of 2 |
